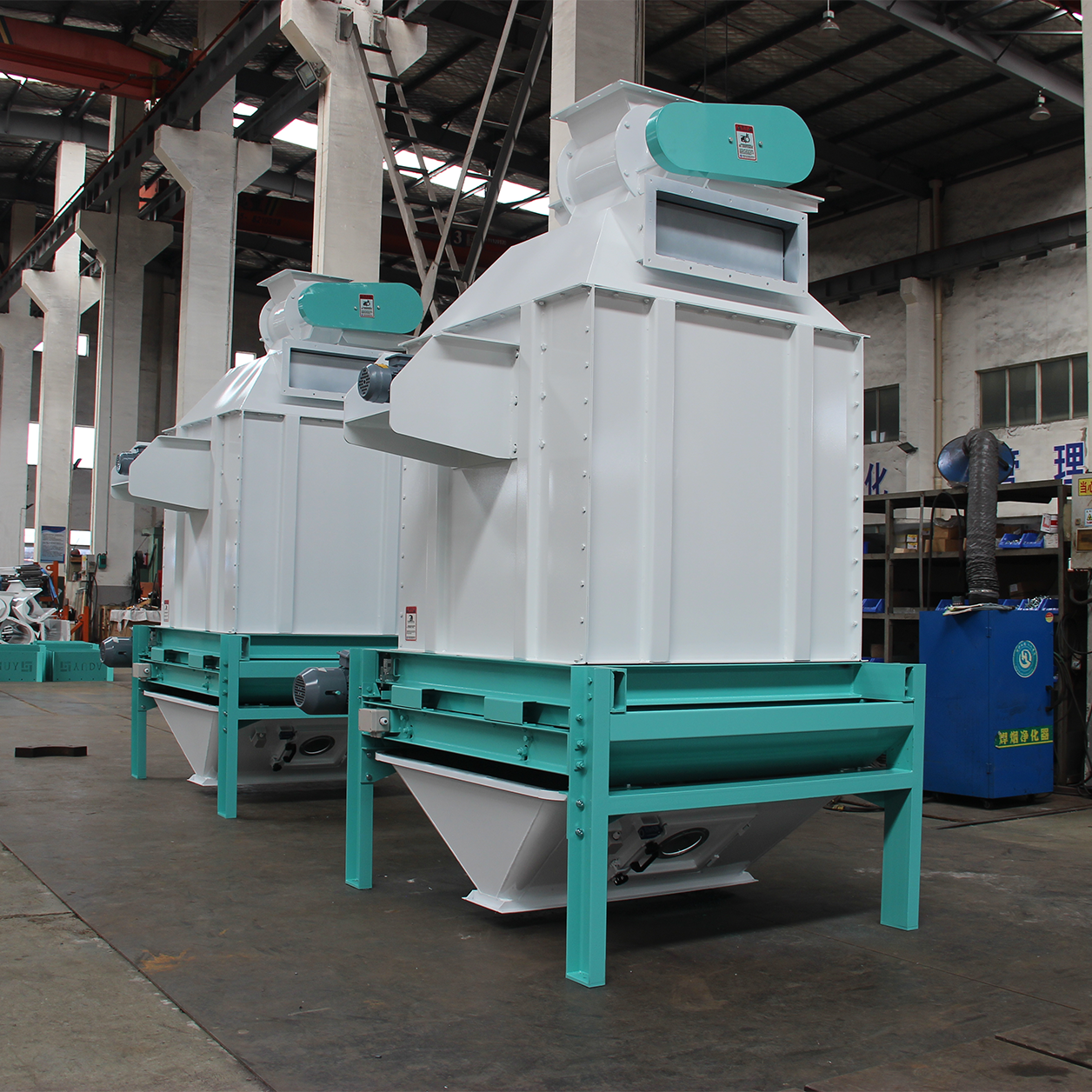

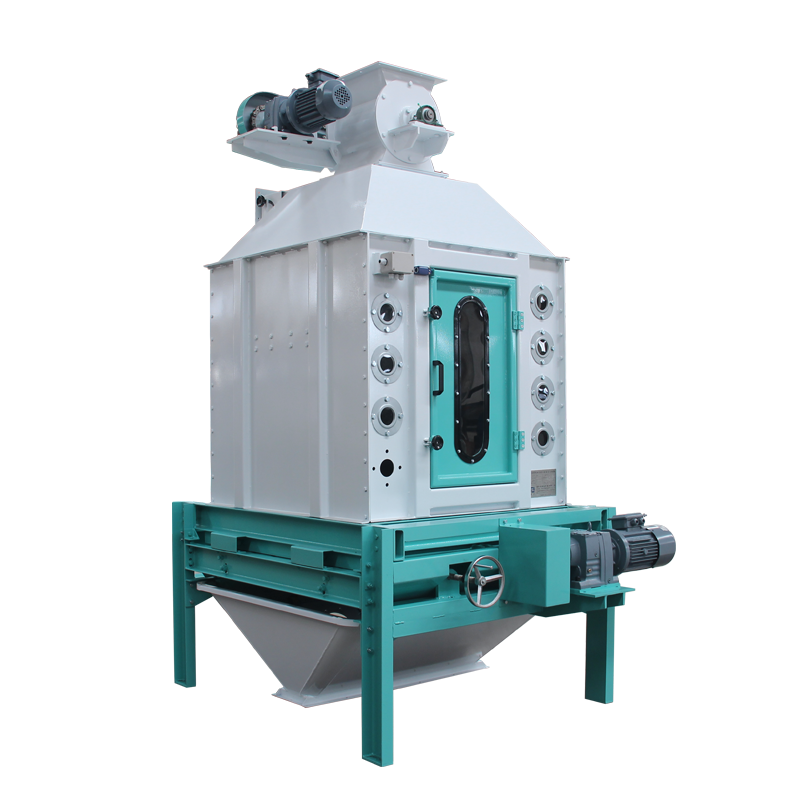

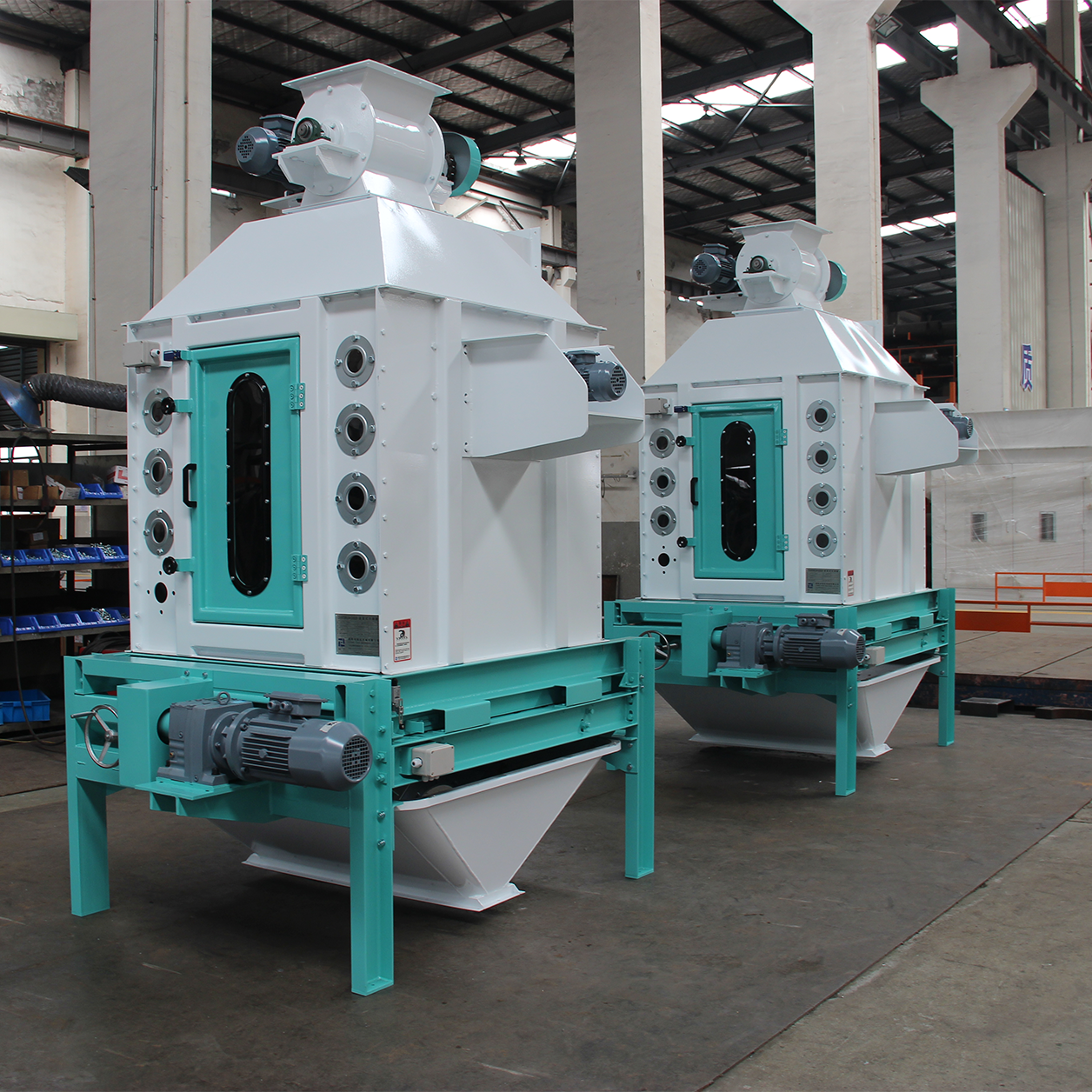

Home > Products > Cooling equipment > SKLN series counterflow cooler
1.Advanced counter-current cooling principle,suitable for various
forms of feed cooling:pellets,expansion materials,extruded
materials,tableting materials,etc.
2.Equipped with power:1.5KW-3KW
3.Capacity:2T/H-30T/H(Varies by raw materials)
4.Greatly reduce the crushing rate and remove the dead corners
of cooling
Features:
1.the cooling chaber is otagonal,and there is no dead corner in cooling;
2.A new type of rotary bulker can be selected to ensure that the material is fully and evenly distributed;
3.Unioading mechanism: You can choose slide valve type,flap type, impeller type, and smooth discharge;

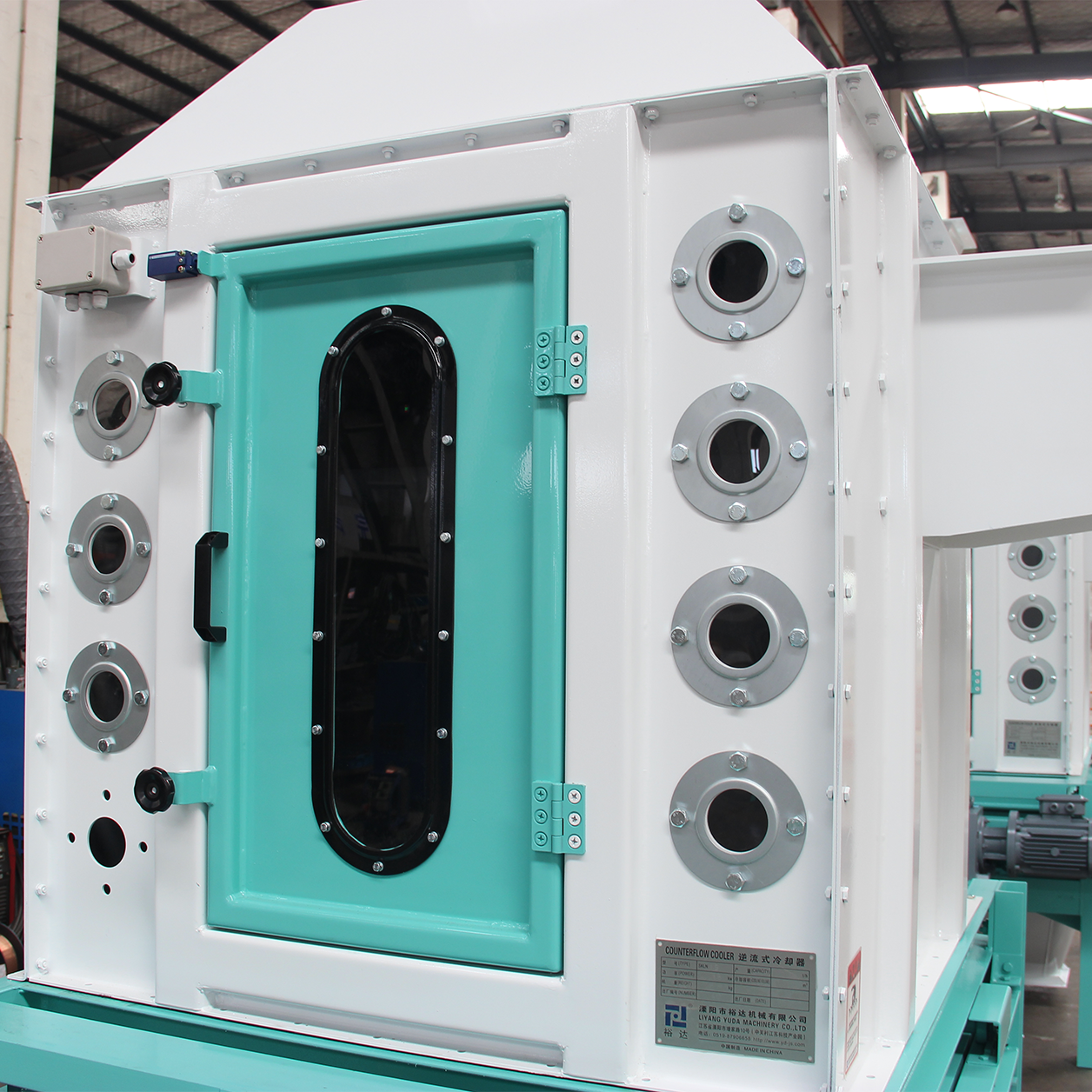

4.The front inspection door and the side observation window are opened for easy inspection and repair;
5.The transmission is stable and reliable, with low noise.
Model information:
| Model | Power(kw) | Capacity(t/h) | Effective volume（m³） | Net Weight（kg） | Dimensions(mm) |
| SKLN1.5 | 1.5 | 1-2.5t/h | 1.5 | 980 | 2000*1400*2850mm |
| SKLN2.5 | 1.5 | 2.5-5t/h | 2.5 | 1170 | 2300*1700*3200mm |
| SKLN4 | 2.2 | 5-10t/h | 4 | 1740 | 2800*2200*3550mm |
| SKLN6 | 3 | 10-15t/h | 6 | 2004 | 3300*2200*4050mm |
| SKLN8 | 4 | 15-20t/h | 8 | 2280 | 3400*2700*4100mm |
| SKLN10 | 4 | 20-25t/h | 10 | 3000 | 3900*2700*4200mm |
| SKLN12 | 4 | 25-30t/h | 12 | 3600 | 3900*3200*4450mm |
