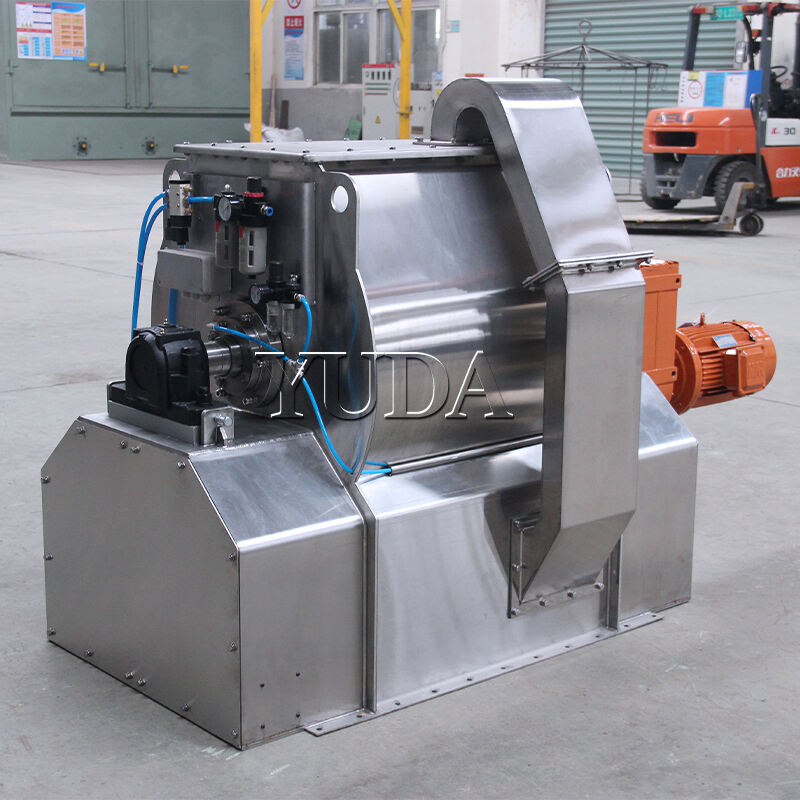

SDHJ series feed single-shaft paddle mixer

  • Description
  • Related Products

Description

Product description:

SDHJ single-shaft paddle mixer is suitable for mixing powdery materials with good fluidity in compound feed factories, so that various feed ingredients are evenly distributed, ensuring the quality of compound feed, and is especially suitable for the production of premix.



Features:

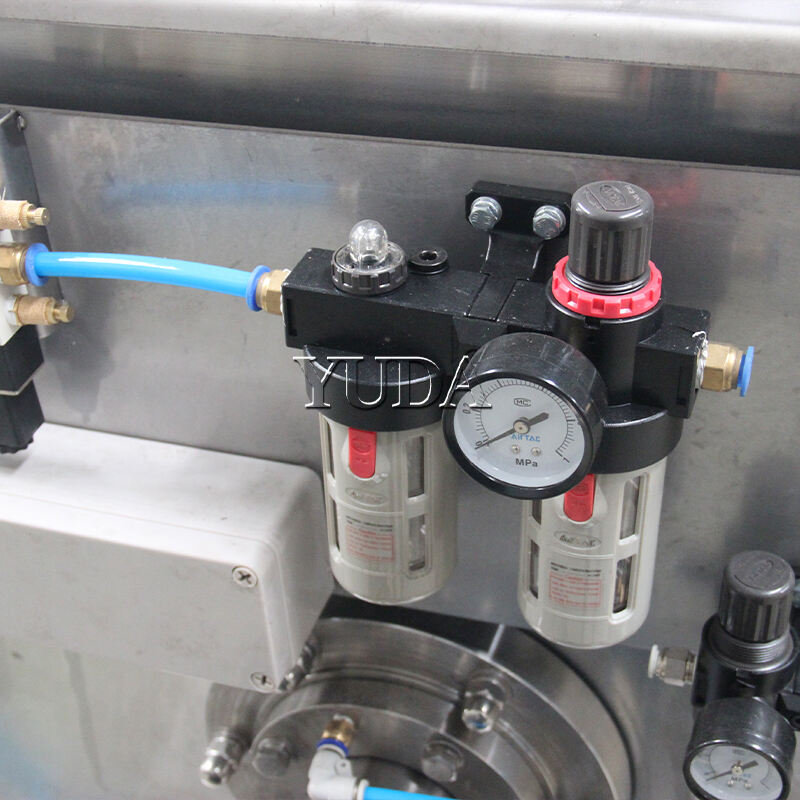

The SDHJ mixer is a horizontal batch mixer. The mixing mechanism is mainly composed of a main shaft and four groups of blades with special angles. The bottom gap is very small. The discharge port is at the bottom of the mixer, and the door is opened for discharging; the materials can be quickly discharged. The discharge door is pneumatically controlled. The machine is equipped with a liquid adding pipeline (configured according to customer requirements), and a small amount of grease can be added without affecting the fluidity of the material.
This model has high mixing efficiency, good mixing quality and little material residue.



Model information:

Model Effective volume (M3) Power (KW) Capacity (KG/Batch)
SDHJ0.5 0.5 7.5 250
SDHJ1 1.0 15 500
SDHJ2 2.0 22 1000

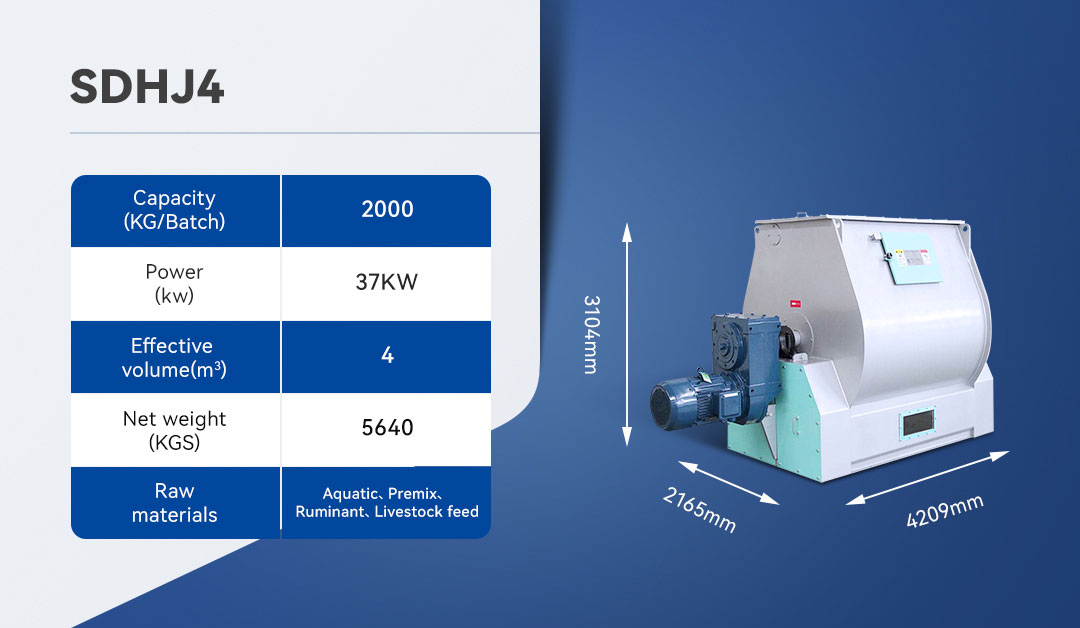

SDHJ4 4.0 37 2000
