The SFSP66 series hammer mill is designed to efficiently crush a wide variety of granular raw materials, including corn, sorghum, wheat, beans, broken biscuits, and other similar materials. This robust machine is ideal for processing both coarse and fine materials, as well as materials with high moisture content or brittle characteristics.
1.Equipped with power:90-110KW
2.Using the northeast dried com as raw material,moisture content<13%
3.Output:3.5-16/H
4.Removable operating door and quick-clamping screen press
structure, humanized operation;
5.Thicken the door cover, strengthen the base, stabilize the
machine, and run more smoothly;
6.Ultra-wide crushing working face, optimizing hammer sorting.
and increasing productivity;
7.Control the rotor in the positive and negative dorection to increase
the utilization rate of the hammer;
8.Hight-precision dynamic balance detection rotor, low vibration and
low noise;
Key Features
①Durable Construction: high-strength steel welded structure, ensuring durability and long-term reliability.
②Reversible Rotor:The rotor is dynamically balanced and capable of operating in both directions, enhancing the efficiency and lifespan of the hammers.
③Safety Interlock System:The operating door is equipped with a safety interlock device, preventing it from being opened while the rotor is in motion.
④Versatile Feeding System:The feeding port is located on the top of the machine and is compatible with various feeding devices.
⑤Symmetrical Hammer Arrangement:The hammers are symmetrically arranged, ensuring balanced crushing and consistent output.
⑥Ease of Operation and Maintenance:The structure is simple and sturdy, easy to install, operate, and maintain.
⑦High Output and Energy Efficiency:Low energy consumption provides high output and is an economic choice for large-scale processing operations.
Model information:

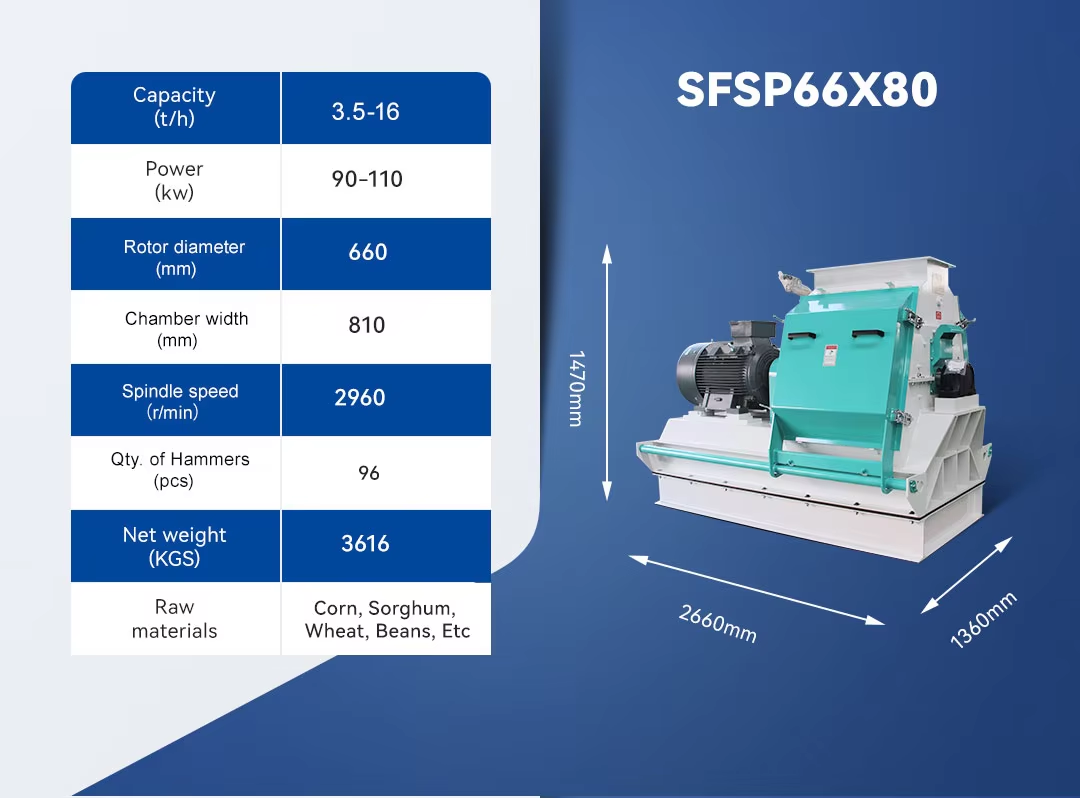

| Model | SFSP66X60 | SFSP66X80 | SFSP66X100 | SFSP66X120 | SFSP66X140 |
| Capacity(t/h) | 2-12 | 3.5-16 | 4.5-20 | 7-30 | 11-48 |
| Power（kw） | 55-75 | 90-110 | 110-132 | 160-200 | 250-315 |
| Screen hole(mm) | φ1-3 | φ1-3 | φ1-3 | φ1-3 | φ1-3 |
| Rotor diameter(mm) | 660 | 660 | 660 | 660 | 660 |
| Chamber width(mm) | 620 | 810 | 1000 | 1200 | 1400 |
| Spindle speed（r/min） | 2970 | 2960 | 2960 | 2960 | 2960 |
| Qty. of Hammers(pcs) | 72 | 96 | 120 | 144 | 168 |
| Net weight(kgs) | 2876 | 3616 | 3880.8 | 4366 | 5364 |
| Dimension（mm） | 2240*1360*1470 | 2600*1360*1470 | 2800*1360*1470 | 3000*1360*1470 | 3500*1360*1470 |
| Raw materials | Corn, sorghum, wheat, beans,etc | ||||
| Note: Raw Material As Corn, ≤ 13%-14% Moisture | |||||
