Characteristics
Keywords：hammer mill grinding machine
Raw material:Wheat, bean, wood chips,etc
Final product：powder
Capacity：1.5-6T/H
Power:37KW
voltage:380v 50hz
Certification:CE、ISO
MOQ:1 set
Color:customized
key selling points:High Efficiency Low Cost
Product description:
Overview

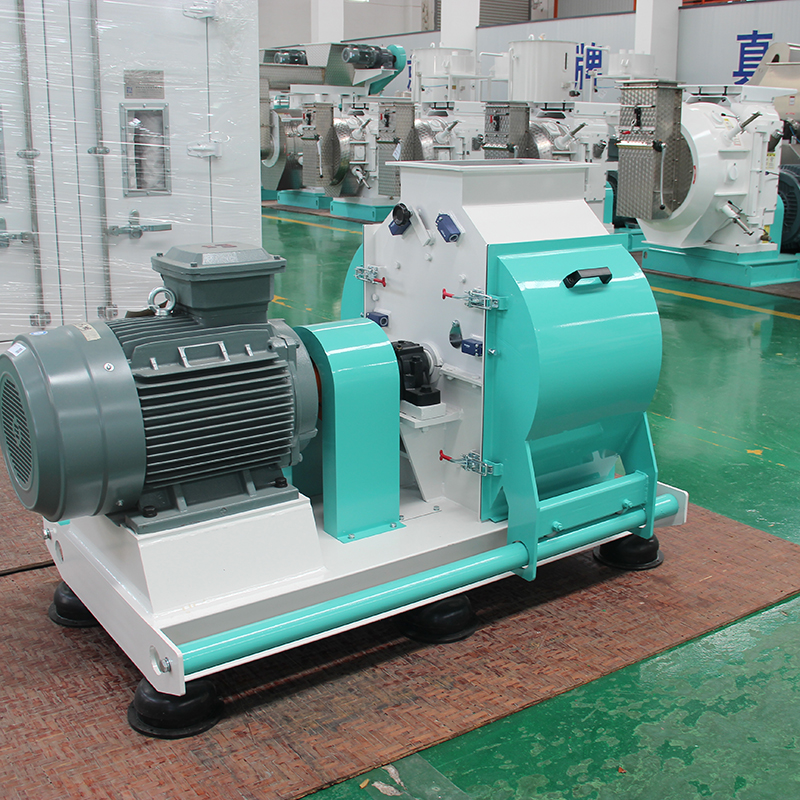

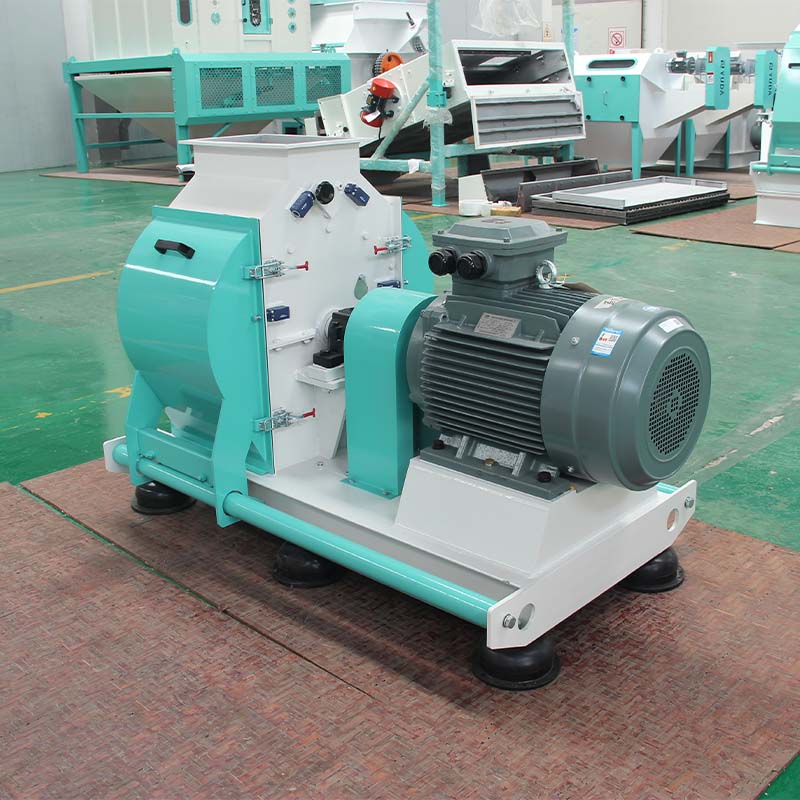

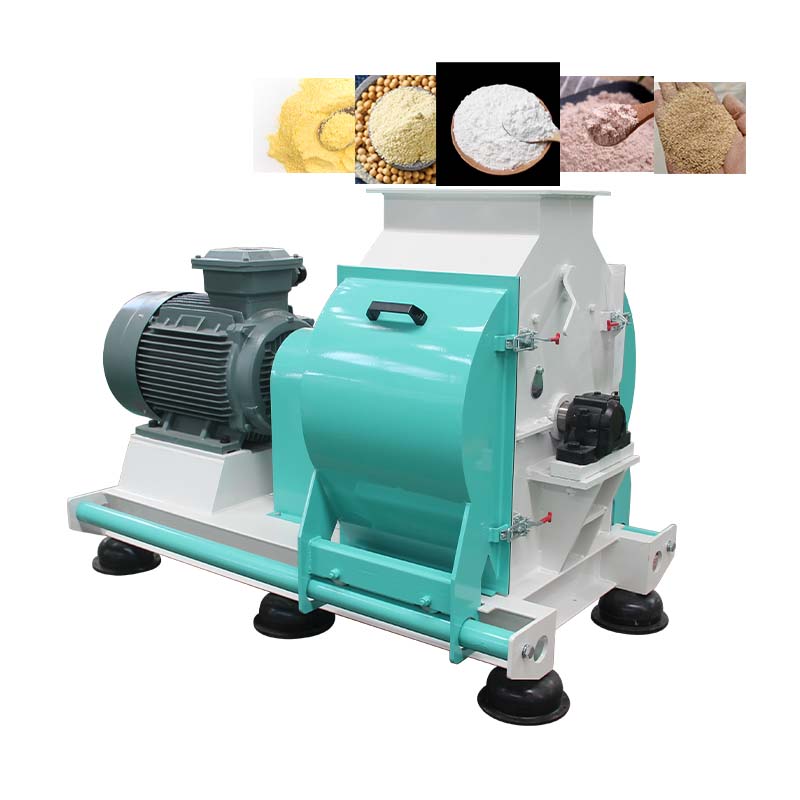

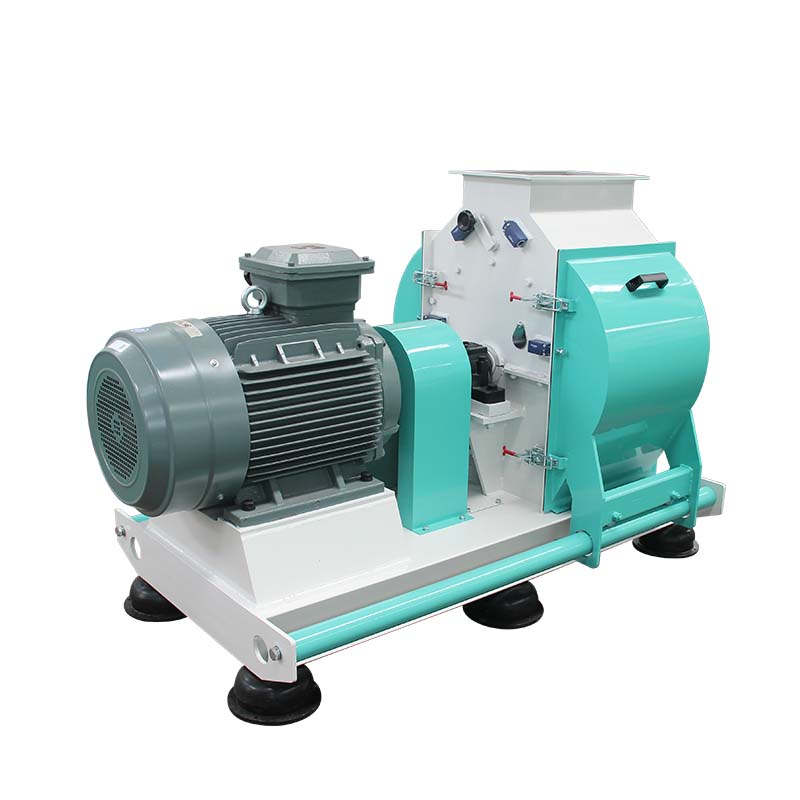

The SFSP56X40 series hammer mill is a high-performance crushing equipment designed for large-scale feed processing and grain handling. It efficiently crushes various granular materials such as corn, sorghum, wheat, beans, and cake meal, meeting both coarse and fine crushing requirements.
Key Features
①Structural Design
Built with high-quality steel plate welding, ensuring high strength and durability.
Integrated design of the crusher rotor and motor, directly driven by a dowel pin coupling, ensuring smooth operation and high transmission efficiency.
②Safety Performance
The rotor is dynamically balanced to ensure stability during high-speed operation.
Equipped with a safety interlock device to prevent the door from opening during operation, ensuring safety.
③Ease of Operation
Top inlet design allows compatibility with various feeding mechanisms, adapting to different production scenarios.

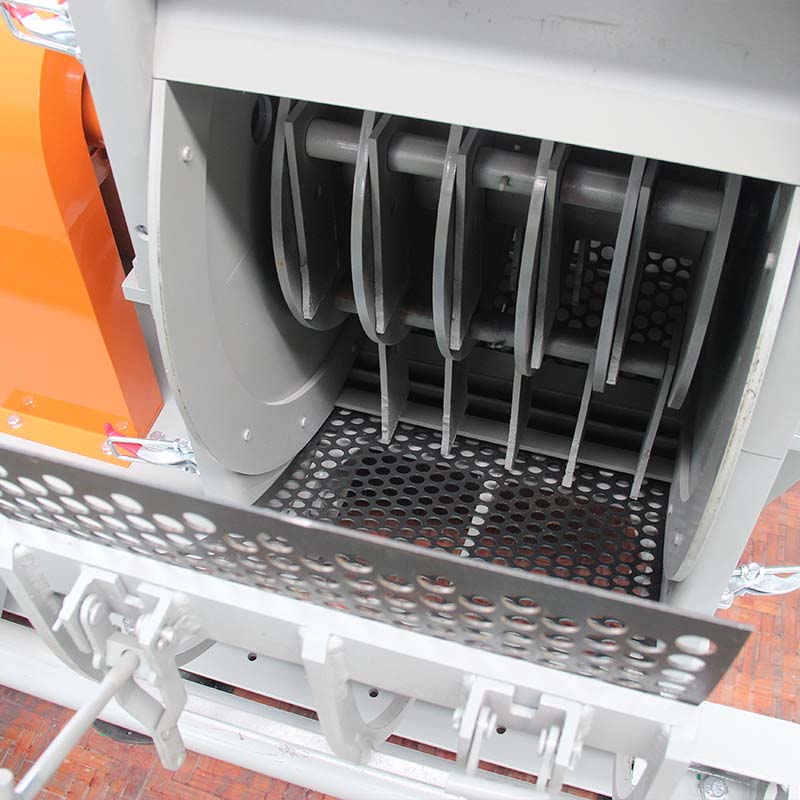

Symmetrically arranged hammers ensure high crushing efficiency and easy replacement and maintenance.
④Multi-Functionality
Combines coarse and fine crushing functions, especially suitable for fibrous materials, high-moisture materials, and fine crushing of brittle materials.
High productivity with low energy consumption, ideal for large-scale continuous production.
⑤Performance Advantages
Simple structure, easy installation, low vibration, and low noise during operation.
Strong durability, low maintenance costs, and a long service life, suitable for high-intensity production environments.
Technical Parameters:
| Model | SFSP56X36 | SFSP56X40 | SFSP56X60 |
| Capacity(t/h) | 1～4 | 1.5-6 | 2-7 |
| Power(kw) | 22 | 37 | 45 |
| Screen hole(mm) | φ1-3 | φ1-3 | φ1-3 |
| Rotor diameter(mm) | 560 | 560 | 560 |
| Chamber width(mm) | 360 | 400 | 600 |
| Spindle speed（r/min） | 2960 | 2965 | 2965 |
| Qty. of Hammers(pcs) | 20PCS | 24PCS | 36PCS |
| Net weight(KGS) | 700 | 800 | 998 |
| Dimensions(mm) | 1467*855*990 | 1650*855*990 | 1878*855*1010 |
| Raw materials | Corn, sorghum, wheat, beans,etc | ||
| Note: Raw Material As Corn, ≤ 13%-14% Moisture | |||
