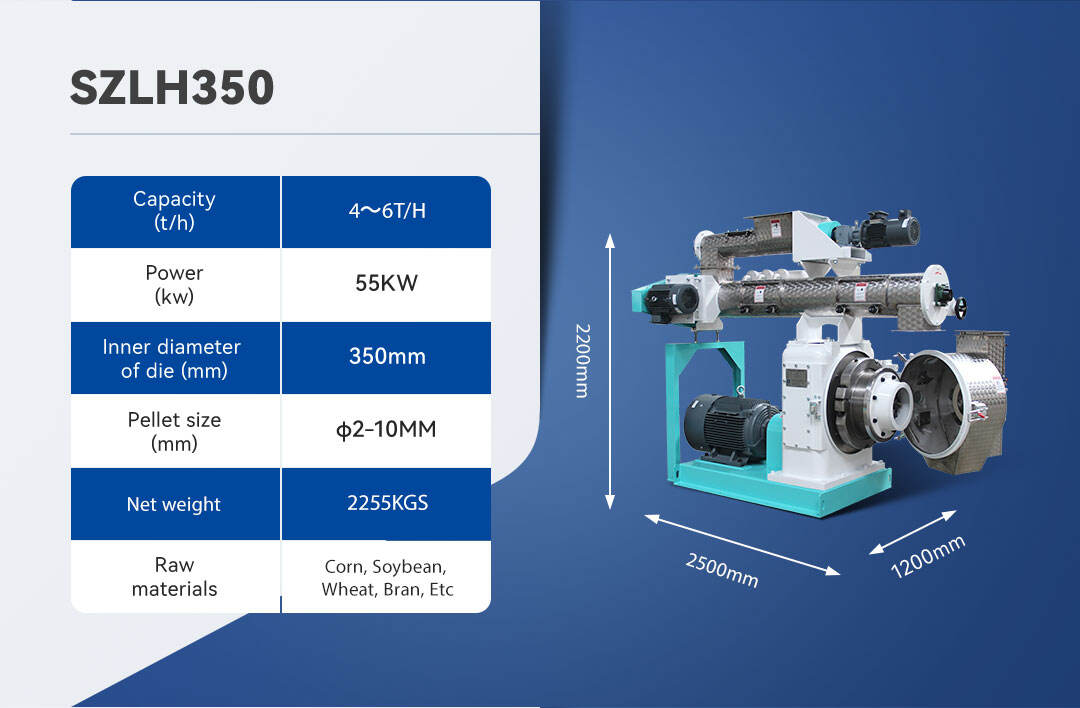

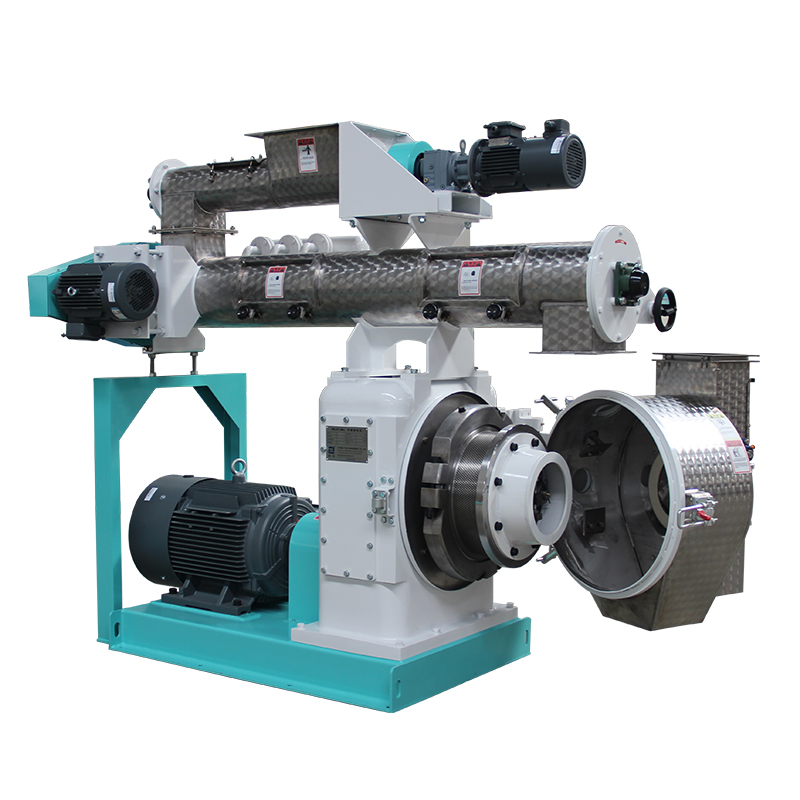

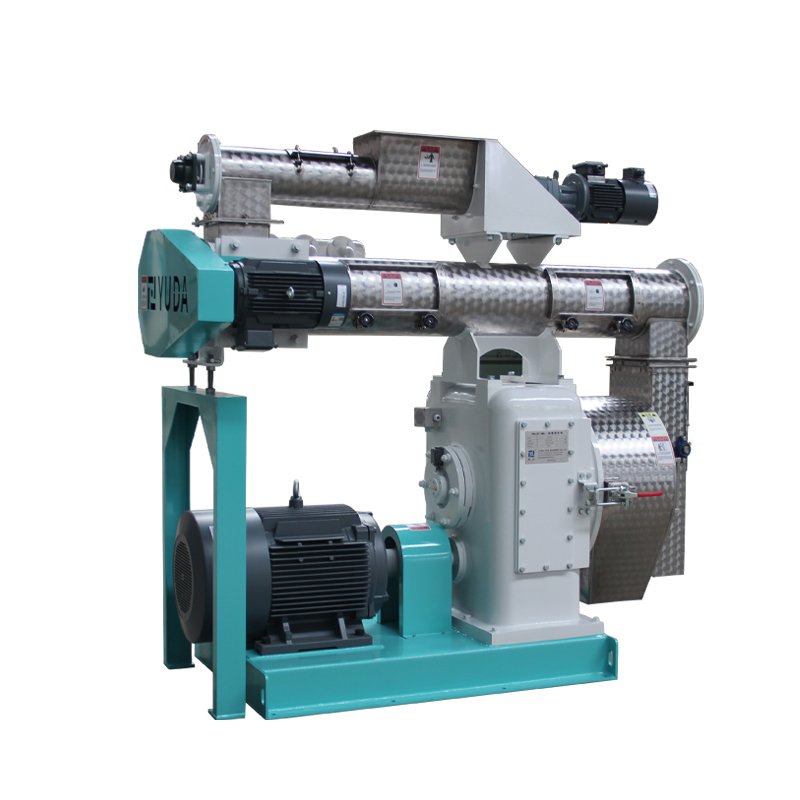

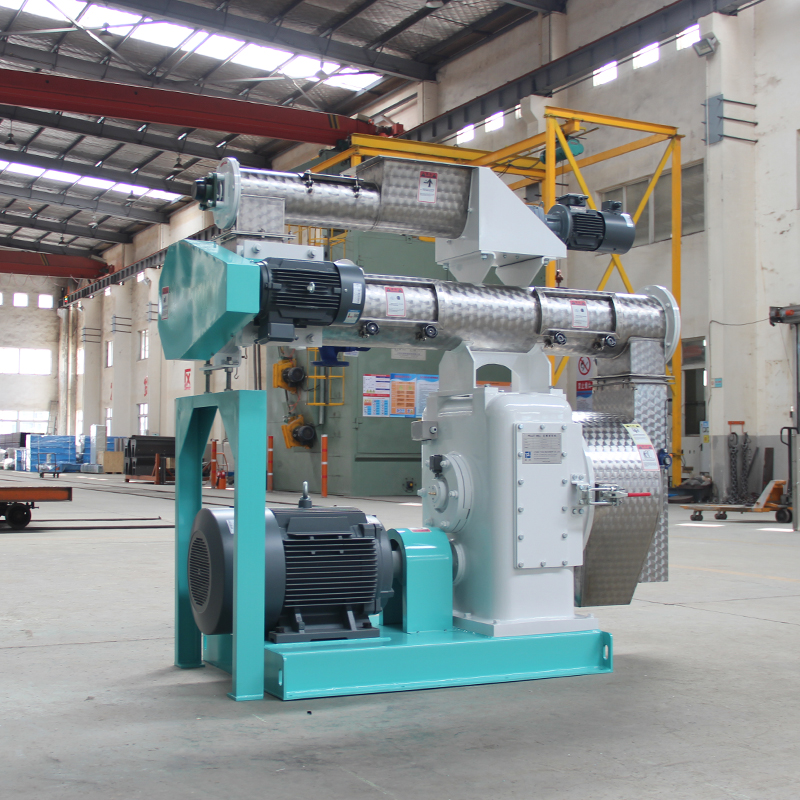

SZLH350 pellet mill is the main machine pressed wood pellet, produces 4-6t/h(varies by raw materials), can be equipped with diesφ2~φ10, features high output, low power consumptio and reliable performance.
Product description:
1.Output:4-6T/H（varies by raw materies)
2.Standard parts such as bearings、oil seals and o-rings are selected from well-known foreign brands;
3.High-precision gear rotation,precise gear grinding,vibration absorption,strong vibration isolation,low noise;

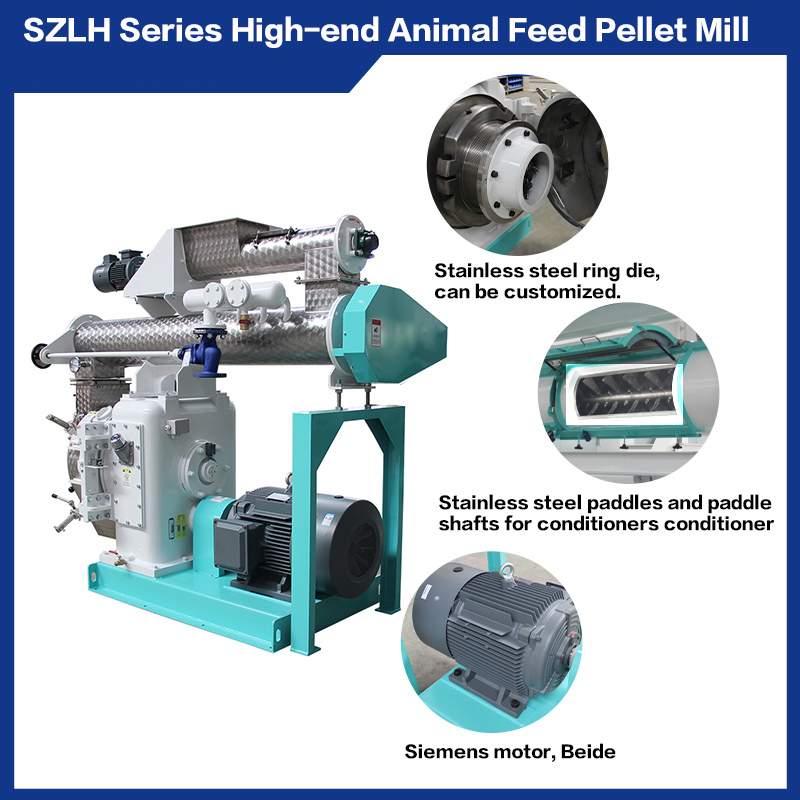

4.Worm gear ring die lifting device improves the efficiency of ring die replacement;
5.Various types of high-end modulators, quality-preserving devices, improve the effect of raw material preparation;
6.Oil circulation cooling and lubrication system to improve the cooling and lubricating effect of main transmission components;
Technical Parameters:
| Model | SZLH250 | SZLH300 | SZLH320 | SZLH350 |
| Motor power (kw) | 18.5KW | 22-30KW | 37KW | 55KW |
| Feeder Power | 1.1KW | 1.1KW | 1.1KW | 1.1KW |
| Conditioner Power | 2.2-3KW | 2.2-3KW | 2.2-3KW | 2.2-3KW |
| Dia.of Ring Die | 250mm | 300mm | 320mm | 350mm |
| Pellet Size | φ2-10mm | φ2-10mm | φ2-10mm | φ2-10mm |
| Capacity (t/h) | 1-2T/H | 2-3T/H | 3-4T/H | 4-6T/H |
| Dimension (mm) | 2500x1200x2000mm | 2500x1200x2100mm | 2500x1200x2200mm | 2500×1200×2200(mm) |
| Net weight | 1160KGS | 1420KGS | 1680KGS | 2255KGS |
