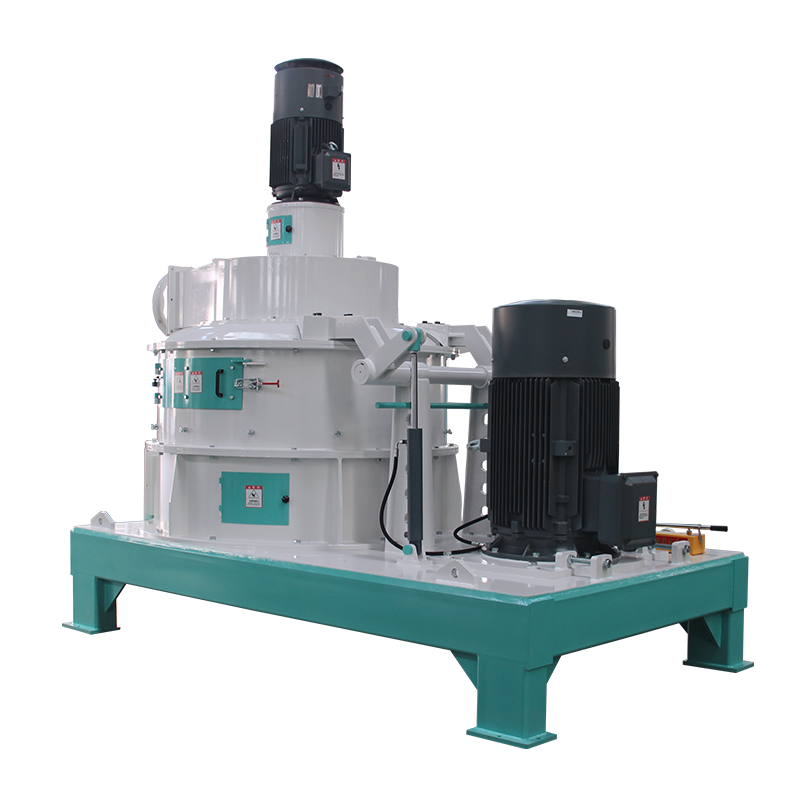

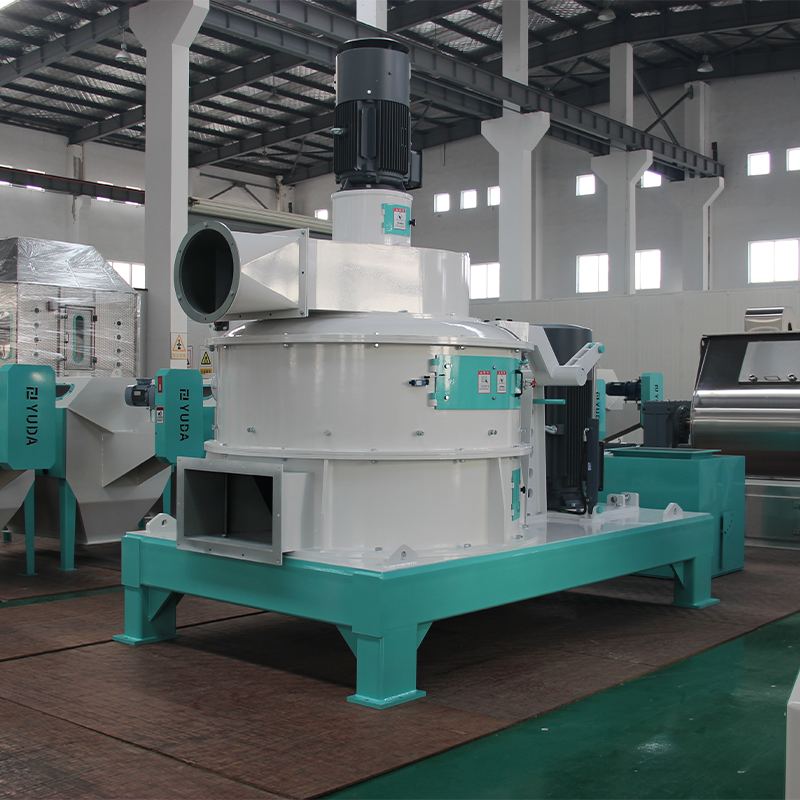

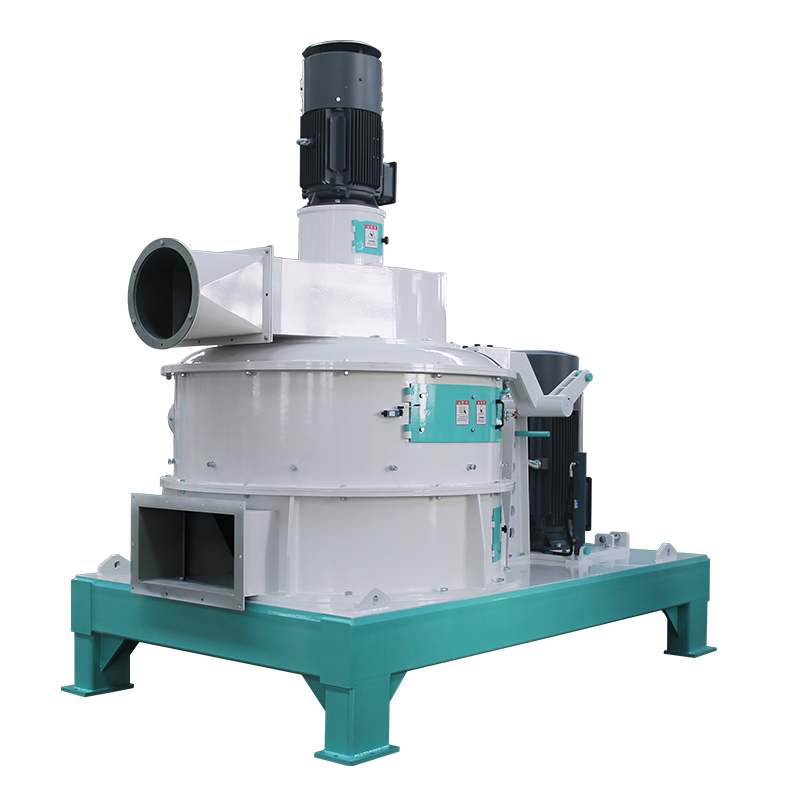

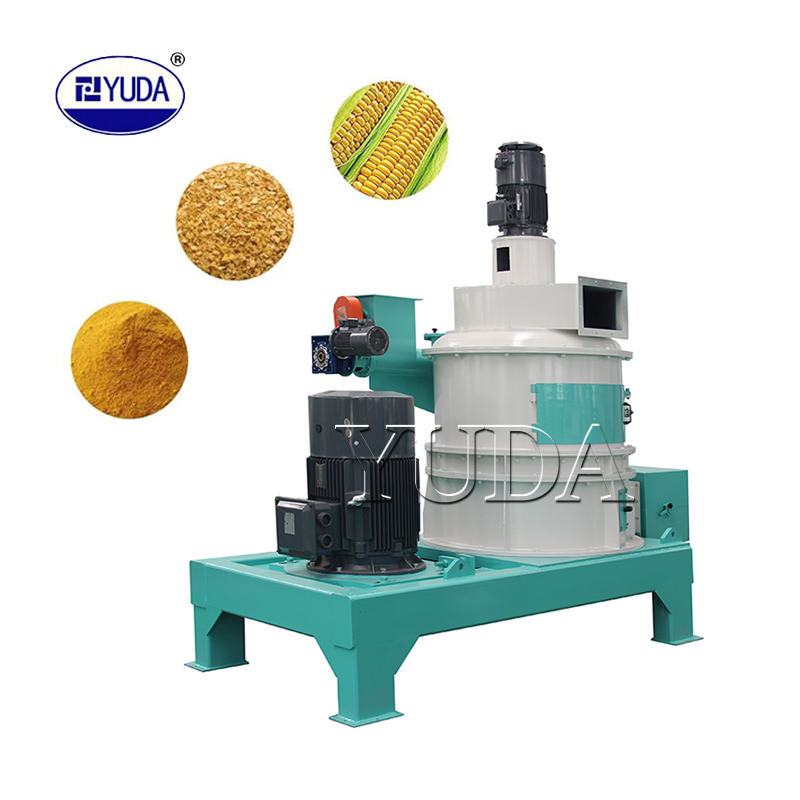

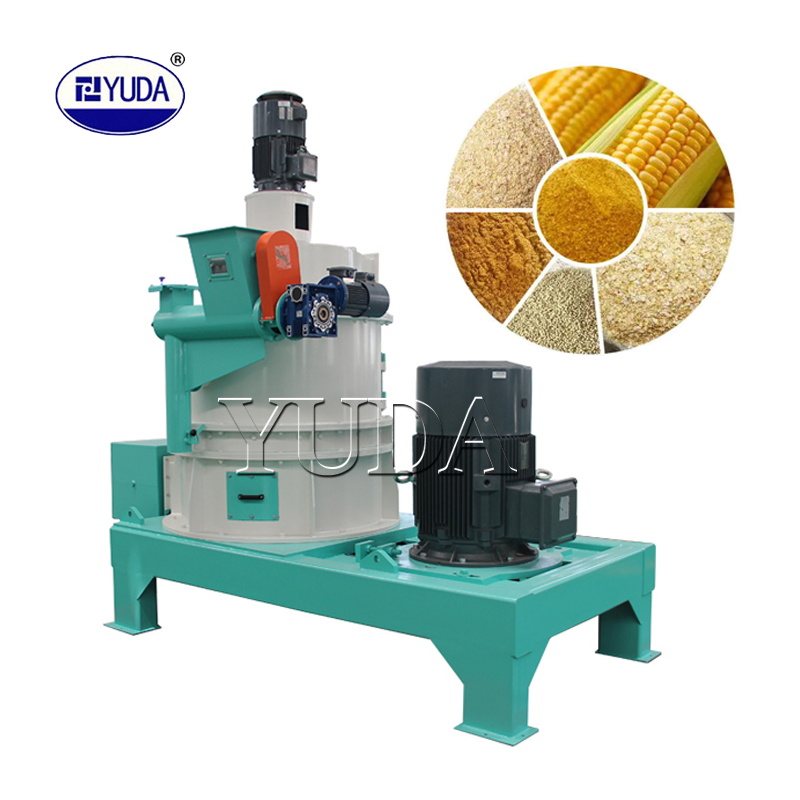

SFWL series vertical pulverizer is a new ultra-fine powder processing equipment for a variety of large and small feed mill, capable of crushing all kinds of materials, such as corn, sorghum, wheat, rice category, soybean meal, fish, etc. after screening, magnetic separation and mixed into the vertical pulverizer processing, in order to achieve the required standard of ultrafine-grained materials, especially for shrimp, turtles, eels and young animals feed fine-pulverized or vertical pulverizer.
Features:
1.2.1 The machine structure is compact, small footprint;
1.2.2 The aircraft structure without screening, crushing and grading into the same confined space, so crushing, grading once completed, to reduce excessive energy loss caused by crushing;
1.2.3 Unique grinding disc structure, high yield;
1.2.4 Grading system optimized design, high-grade efficiency;
1.2.5 Large access door structure, easy to maintenance;
1.2.6 Unique hammer knife installation, it is more efficient to replace hammer knife;
1.2.7 The new structure of hammer knives, effectively reduce the cost;
1.2.8 Uniform particle size adjustable, wind sorting, transportation, low materials temperature;
1.2.9 Particle size 60-300 mesh continuously adjustable up to the special requirements of ultra-fine powder;
1.2.10 Equipped with special mufflers can significantly reduce noise.
1.2.11 Unique arch breaker prevent feeding material to colorectal arch;
1.2.12 Stable operation, little vibration.
1.3 Operating Conditions
1.3.1 Vertical pulverizer should be installed in the basement or ground floor, ambient temperature -5 ℃ -40 ℃;
1.3.2 Process should match with the supporting equipment of vertical pulverizer;
1.3.3 Operating voltage should be stable, deviation is less than ± 5%;
1.3.4 Material into the grinder diameter not larger than 1mm, the moisture is not more than 12%.
Model information:
| Model | SFWL82 | SFWL110 | SFWL130 |
| Capacity(t/h) | 1.2-2.2 | 1.5-2.8 | 2.2-3.6 |
| Spindle speed (r/min) | 3110 | 2340 | 1980 |
| Graded rotational speed (r/min) | 100-1000 | 100-1000 | 100-1000 |
| Rotor diameter (mm) | 820 | 1100 | 1300 |
| Transmission narrow V-belt quantity | 6 | 8 | 8 |
| Main Power(kW) | 75~90 | 90~110 | 132~160 |
| Split-pole motor(kW) | 5.5 | 7.5 | 11 |
| Feeding motor power (kW) | 1.1 | 1.5 | 1.5 |
| Dimensions (mm) | 2550×1602×3050 | 2800×1852×3050 | 3050×2052×3050 |
| Weight(kg) | 4650 | 4810 | 5350 |
| Minimum air volume(m3/h) | 5400 | 7200 | 8400 |
| Note: The above yield test raw materials are white fish powder with a moisture content of less than 8% and a bulk density of not less than 0.55t/m3. The finished product has a particle size of 90% over 80 mesh | |||
