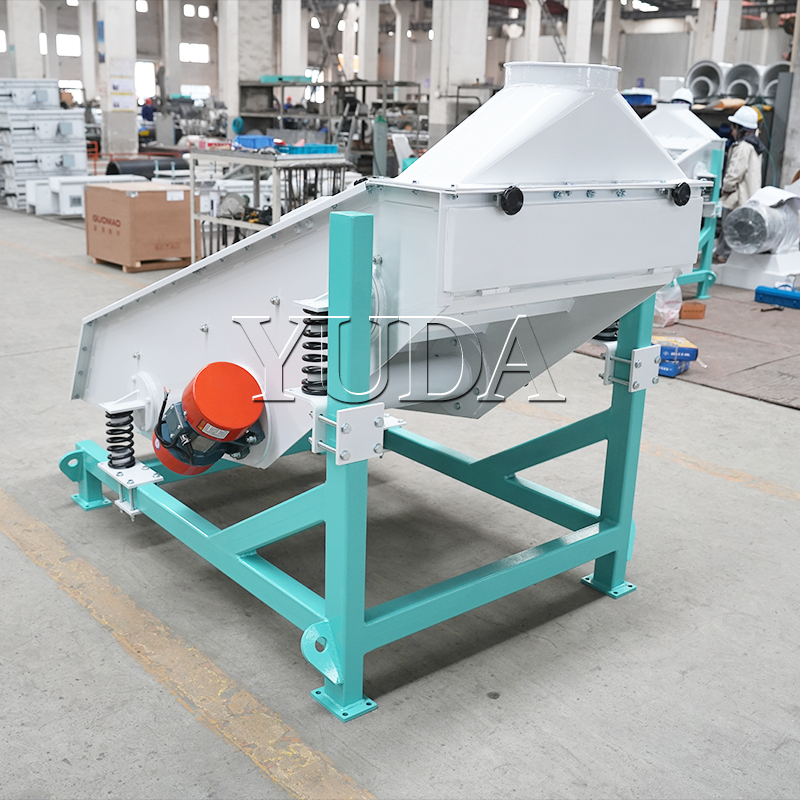

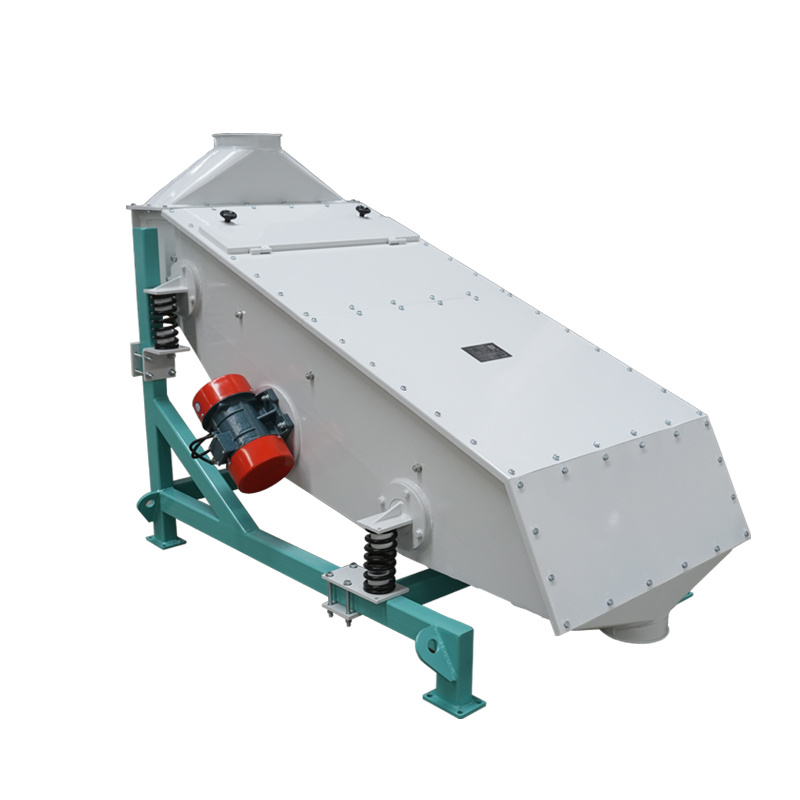

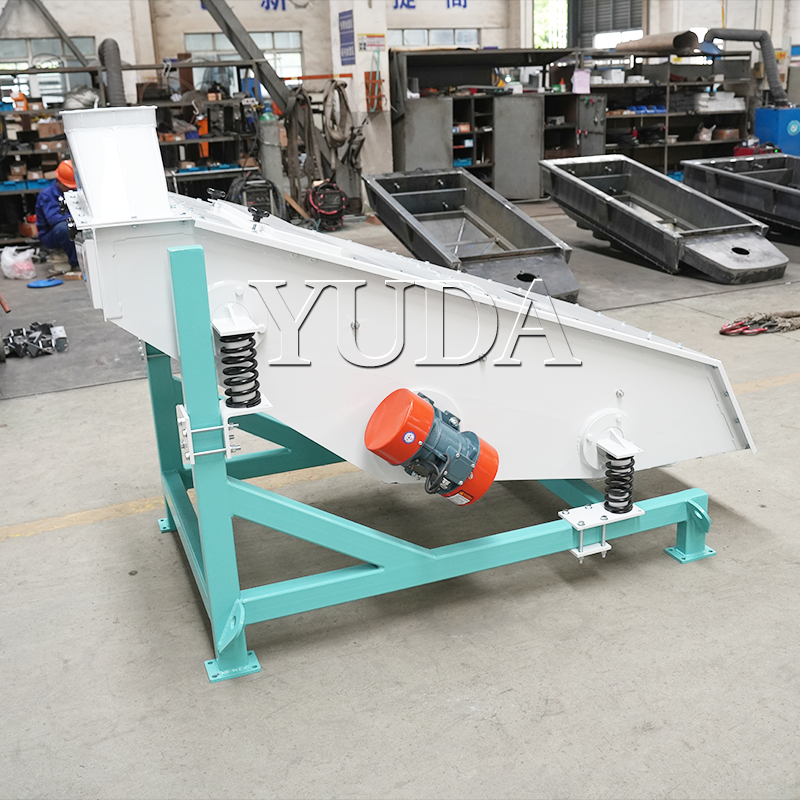

SFJZ series vibrating sifter is mainly used for powder and pellets screening and classification. It can also be used to feed factory raw materials’ screener and secondary crushing intermediate products’ classification.In addition, it also widely used in grain, food, chemical, sugar, mining, paper and other industries of raw materials and finished screening and classification.
1.Patented product (Patent No.: ZL202121654299.4);
2. Multi-layer screens available for selection; graded layer by layer, featuring large output and excellent cleaning & grading performance;
3. A single machine can clean two types of materials (e.g., corn and wheat) without replacing the screen plate;
4. Dual-layer screen surface with dual-channel feeding for simultaneous screening, ensuring large output and superior cleaning & grading results;
5. Adjustable amplitude and exciting force to meet the cleaning and grading requirements of different materials;
6. Adjustable vibration direction to adapt to the cleaning and grading of various materials;
7. Adjustable screen surface inclination angle to fulfill the cleaning and grading needs of different materials.
| Model | Capacity(t/h) | Power(kw) | Effective area(mm*mm) | Dimension(mm) | Weight(kg) |
| SFJZ80 | 5-10T/H | 0.37 | 790*1800 | 2020*1200*1250 | 360 |
| SFJZ100 | 10-15T/H | 0.37 | 990*1800 | 2090*1400*1300 | 450 |
| SFJZ125 | 15-20T/H | 0.37 | 1240*1800 | 2090*1640*1330 | 570 |
| SFJZ150 | 20-25T/H | 0.75 | 1500*1850 | 2530*1850*1600 | 720 |
