SFJH Series Rotary Screener is suitable for the screening and grading of powdery materials or pellets in feed mills. It can also be used for the primary cleaning of raw materials in feed mills and the grading of intermediate products after secondary pulverization of large and medium-sized feed mills. In addition, it can be widely used in the screening and grading of raw materials and finished products in various industries such as grain, food, chemical, sugar, mining, and paper.

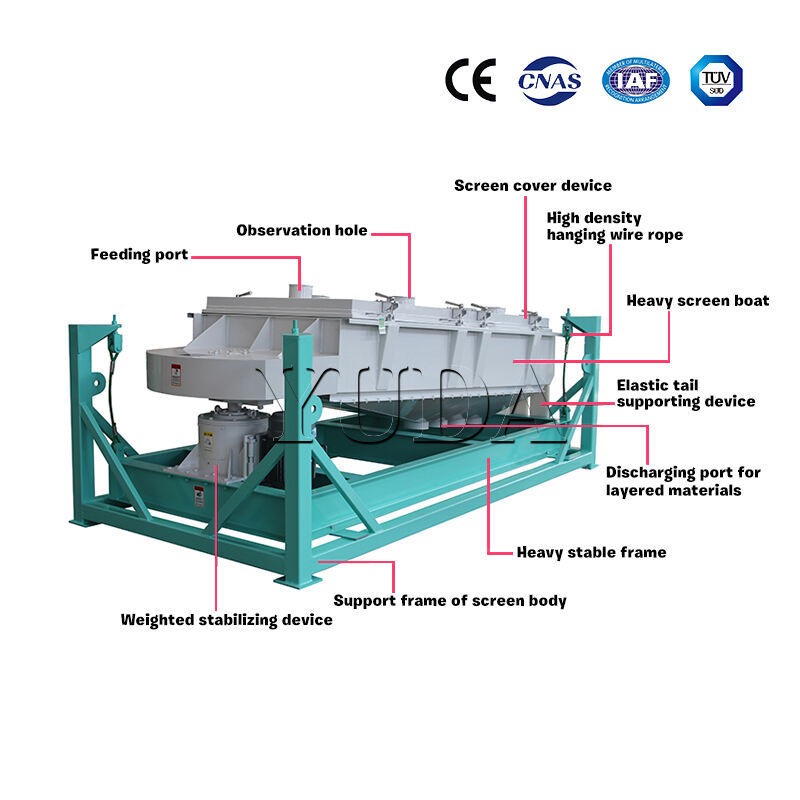

New transmission box structure, using imported thickened NSK bearings;
The screen boat drive adopts belt drive, which is balanced and low in noise. The pulley is assembled and easy to assemble and disassemble.
The rear support is optionally equipped with elastic support, which greatly extends the service life of the equipment and supports.
The angle of inclination is large, the screening speed is fast, the classification is thorough, and the sieving effect is good.
Combined or split screen frame structure, it is more convenient and quick to change screens;
The internal flow line of the discharge port is designed to prevent material from depositing and avoid cross contamination.
| Model | Capacity(t/h) | Power(kw) | Effective area(MM*MM) | Dimension(mm) | Weight(kg) |

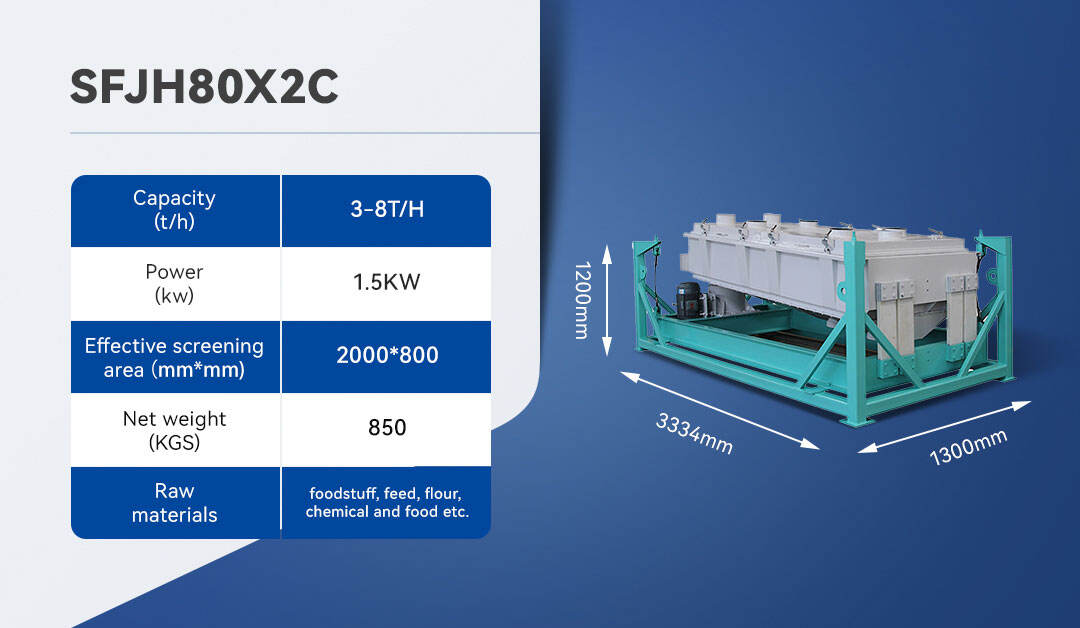

| SFJH80X2C | 3-8t/h | 1.5kw | 2000*800 | 3334*1300*1200 | 850 |
| SFJH110X2C | 6-10t/h | 3KW | 2160*1100 | 3550*1750*1340 | 1668 |
| SFJH130X2C | 10-15t/h | 4KW | 2400*1250 | 3800*1900*1382 | 1800 |
| SFJH140X2C | 12-18t/h | 5.5KW | 3000*1400 | 4835*2155*1550 | 2600 |
| SFJH150X2C | 14-22t/h | 5.5KW | 3200*1500 | 5060*2255*1650 | 2800 |
| SFJH130X3C | 10-15t/h | 4KW | 2400*1250 | 3800*1900*1482 | 2600 |
| SFJH140X3C | 12-18t/h | 5.5KW | 3000*1400 | 4835*2155*1650 | 2820 |
| SFJH150X3C | 12-20t/h | 5.5KW | 3220*1500 | 5060*2255*1750 | 3100 |
