1.Quality improvementof pellts suitable for various animals
2.Equipped with feeder and hydraulic pump power
3.1.5+1.5KW－3+3KW
4.Stable volume:4-10 cube meters
5.Capacity:10T/H-20T/H
6.Settling time:10-30 minutes
7.Steam pressure:<0.1MPa

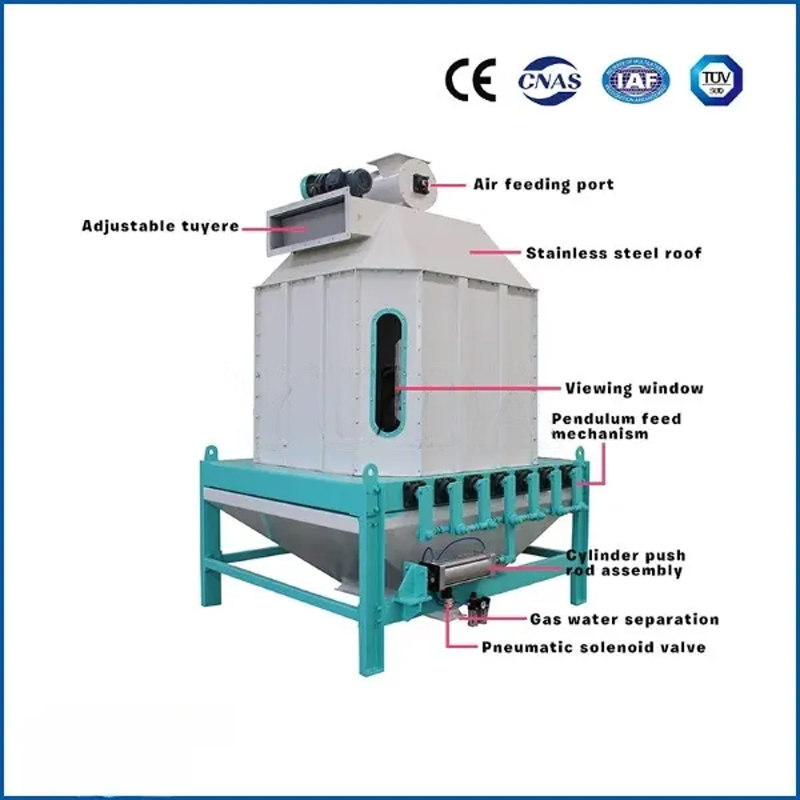

Features:
1.The swing type turning plate discharge mechanism controlled by the fiexible hydraulic transmission system has smooth
discharge,adjustab dischargeflow and speed,and uniform discharge volume;
2.The heat preservation box adopts jacket heat preservation,the heat preservation effect is outstanding,and the material is heated uniformly;
3.The material contact part is made of stainless steel,which has good corrosion resistance;
4.The anti-rotation level device controls the discharge of materials,which is reliable and safe;
Model information
| Model | Power（kw） | Capacity（t/h） | Volume（m³） | Net Weight（kg） | Dimensions(mm) |
| SKLB1.5 | 1.5kW | 1-2.5t/h | 1.5 | 1000 | 1800*1710*2910 |
| SKLB2.5 | 1.5kW | 2.5-5t/h | 2.5 | 1400 | 2110*2030*3210 |
| SKLB4 | 1.5kW | 5-10t/h | 4 | 2000 | 2510*2600*3550 |
| SKLB6 | 1.5kW | 10-15t/h | 6 | 2200 | 3600*3020*4050 |
| SKLB8 | 3kW | 15-20t/h | 8 | 2510 | 3080*3080*4070 |
| SKLB10 | 3kW | 20-25t/h | 10 | 3250 | 3080*3570*4200 |
| SKLB12 | 3kW | 25-30t/h | 12 | 3850 | 3570*3570*4240 |
