1.Quality improvement of pellets suitable for Various animals
2.Equipped with feeder and hydraulic pump power
3.1.5+1.5KW-3+3KW
4.Stable volume:4-10 cube meters
5.Capacity:15-20T/H(varies by raw materials)
6.Settling time:10-30 minutes
7.Steam pressure:<0.1MPa
Product description:
The cooling of expansion material is an indispensable process in the expansion section. The pendulum counter current cooler can cool the expansion material with the temperature of 70 ° C ~ 90 ℃ from the expander to 3 ℃ ~ 6 ° C slightly higher than the room temperature, and can reduce the water content by more than 3%, which is convenient for the transportation, storage and storage of expansion material. It is also suitable for the cooling of expansion material and granular material in the expansion section and granulation section. The output of the tilting counter current cooler varies with the type of cooler. It can be used in feed factories of various scales.
Features:
The pendulum counter current cooler is a new type of cooler which is popular in the world. It can be used not only for the cooling of agglomerate, block and powder materials, but also for the cooling of granular materials. It uses the counter current cooling principle to cool the materials with high temperature and high humidity, that is, the ambient cold air passes through the material layer vertically, contacts with the cold material first, and the gradually heated hot air contacts with the hot material. The direction of the air flow is opposite to the direction of the material flow, so as to gradually cool the materials. When cooling the granular materials, it can avoid the direct contact between other coolers and the high temperature particles due to the cold air, so that the particles can be cooled Surface cracking of particles caused by sudden cooling. As the cold air enters the cooler from its bottom in all directions, the inlet area is large and the utilization rate of cold air is high, the cooling effect is remarkable. The machine has low energy consumption, simple operation and high degree of automation, so the pendulum counter current cooler is a new generation product superior to the previous vertical and horizontal coolers.
Model information:
| Model | Power（KW） | Capacity（t/h） | Volume（m³） | Net Weight（kg） | Dimensions(mm) |
| SKLB1.5 | 1.5kW | 1-2.5t/h | 1.5 | 1000 | 1800*1710*2910 |
| SKLB2.5 | 1.5kW | 2.5-5t/h | 2.5 | 1400 | 2110*2030*3210 |
| SKLB4 | 1.5kW | 5-10t/h | 4 | 2000 | 2510*2600*3550 |
| SKLB6 | 1.5kW | 10-15t/h | 6 | 2200 | 3600*3020*4050 |

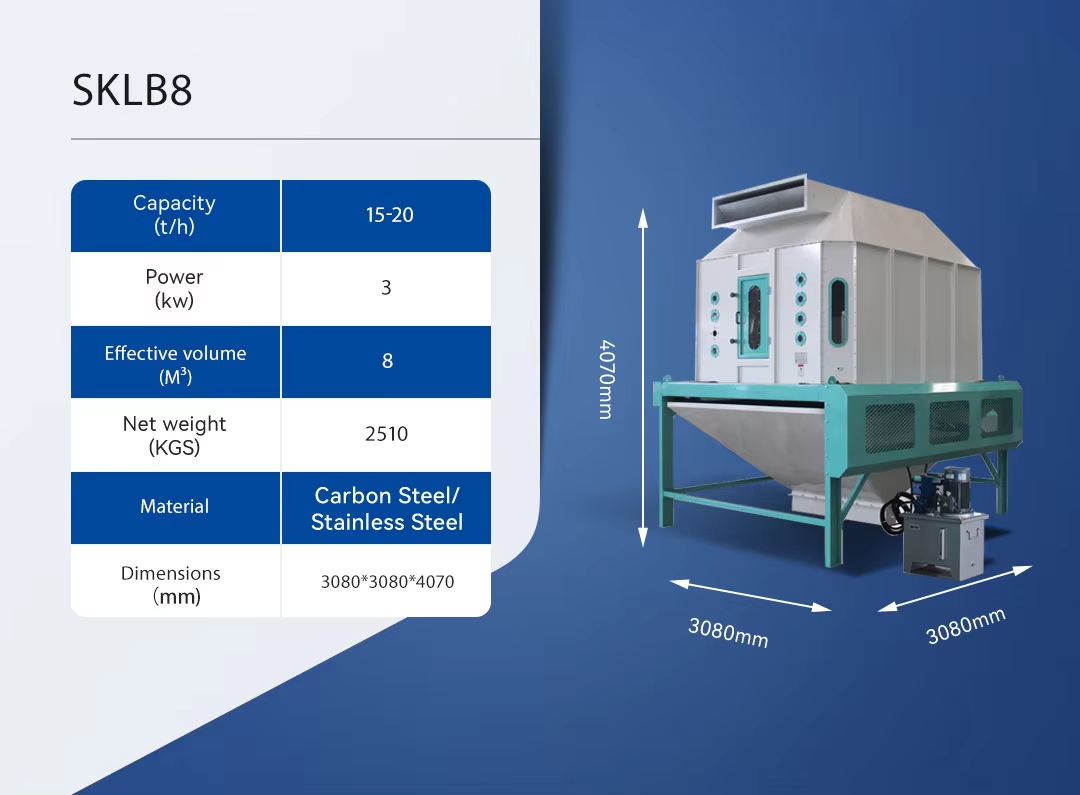

| SKLB8 | 3kW | 15-20t/h | 8 | 2510 | 3080*3080*4070 |
| SKLB10 | 3kW | 20-25t/h | 10 | 3250 | 3080*3570*4200 |
| SKLB12 | 3kW | 25-30t/h | 12 | 3850 | 3570*3570*4240 |
