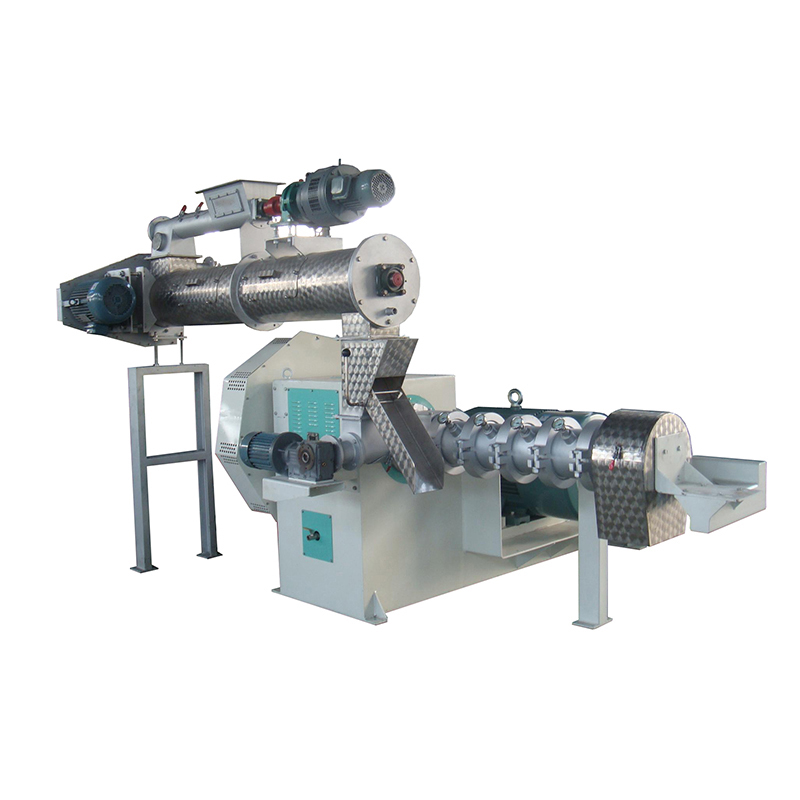

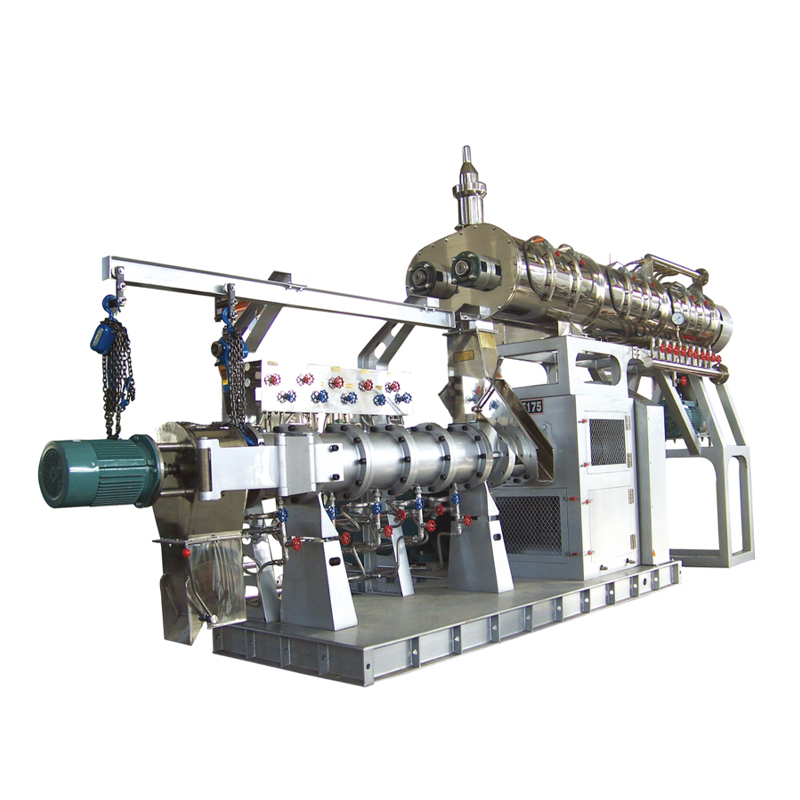

Single Screw Extruder

  • Description
  • Related Products

Description

Product description&Features:

Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.

Combined shaft makes it easy to check or replace bearings in bearing house.

Involute spline shaft is adapted makes it easy to adjust and replace the screw.

Circled tunnel design barrel with Iiner can achieve heating/cooling function.Steam and water can also be injected directly into the barrel.

Screw is made of special anti-wear alloy with large L/D ratio assures smoothly production for all kinds of sinking / floating feed.

Fast replacing mechanism for die and screw and on-line adjustment for cutter.

It is mostly suitable for produce floating pellet in die diameter 2~6mm.



Model information:

Model Main power(KW) Feeder power(KW) Cutter power(KW) Conditioner power(KW) Capacity(T/h)
AFE145 99/110 1.5 4 11 1-3
AFE175 132/160 2.2 5.5 15 3-5
AFE215 200/250 2.2 7.5 22 5-10
