Home > Products > Granulating equipment > SZLH series animal feed pellet mill

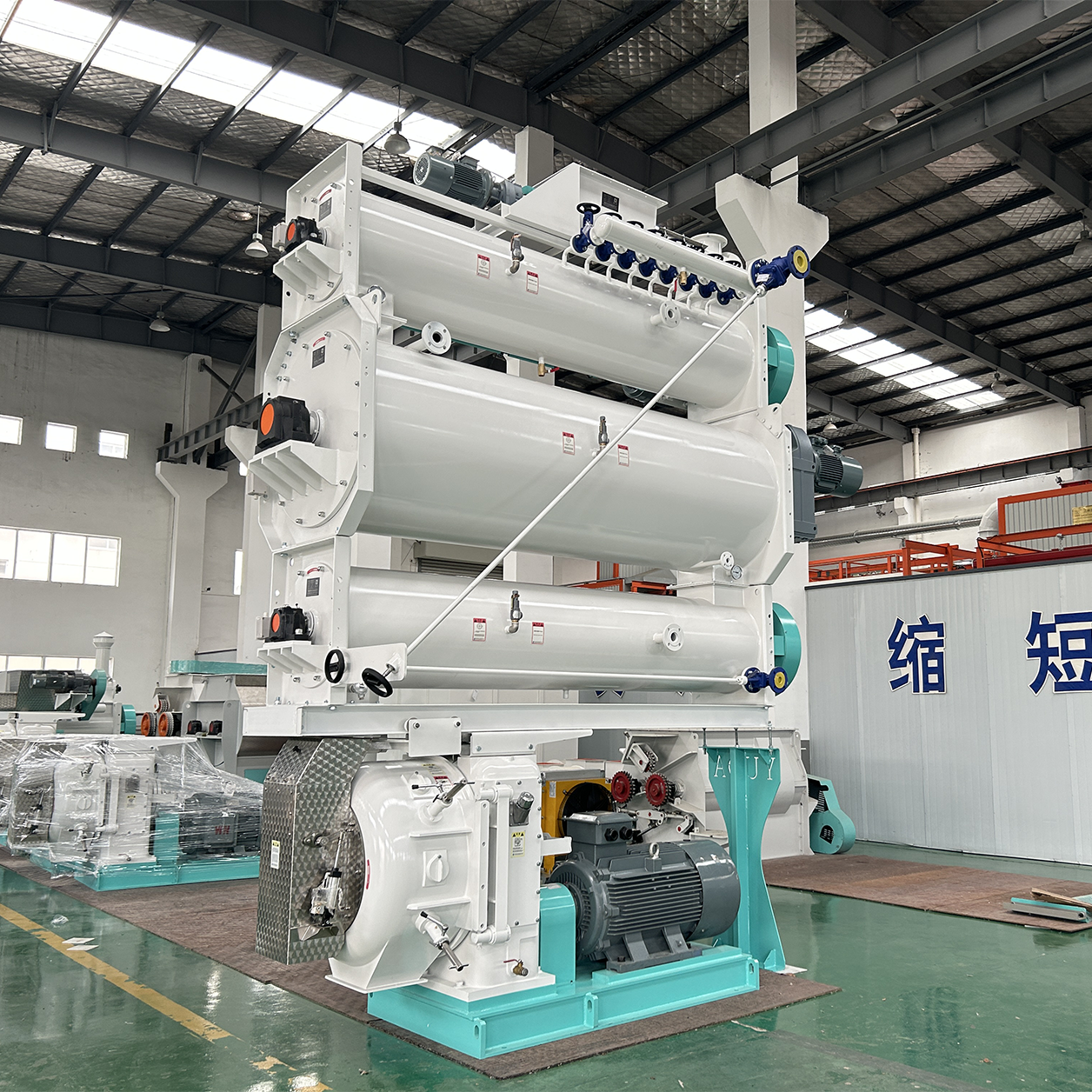

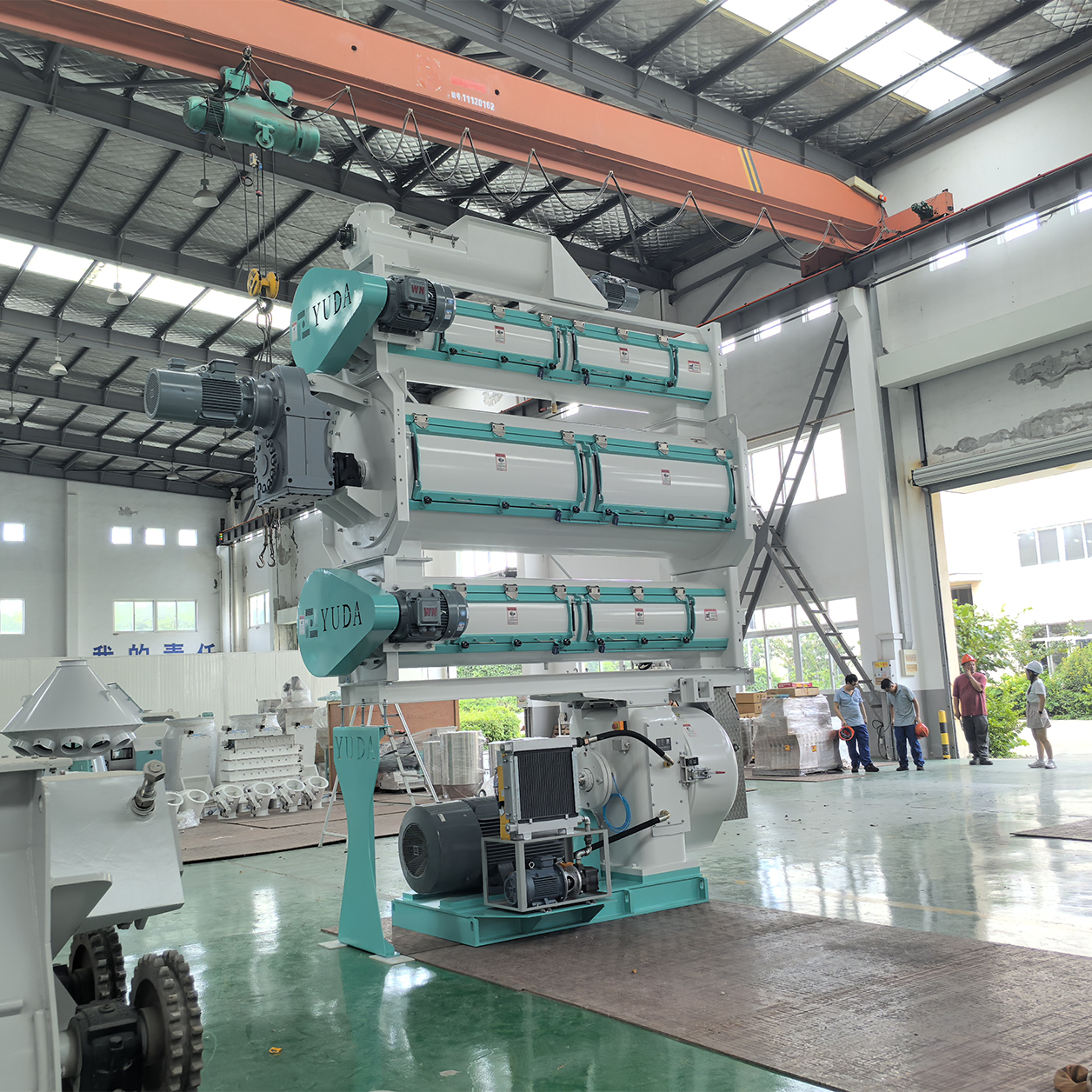

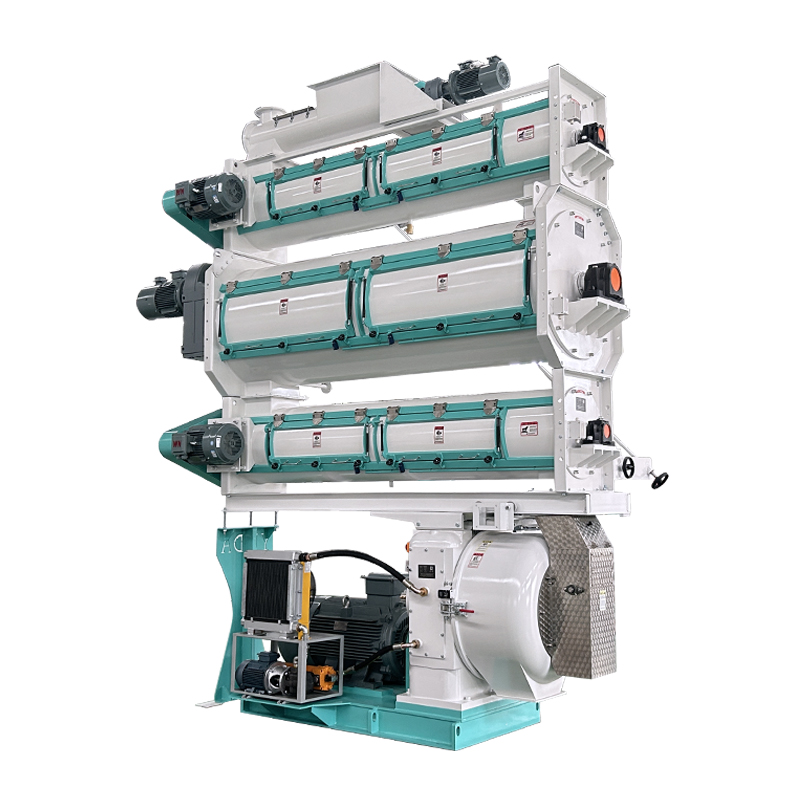

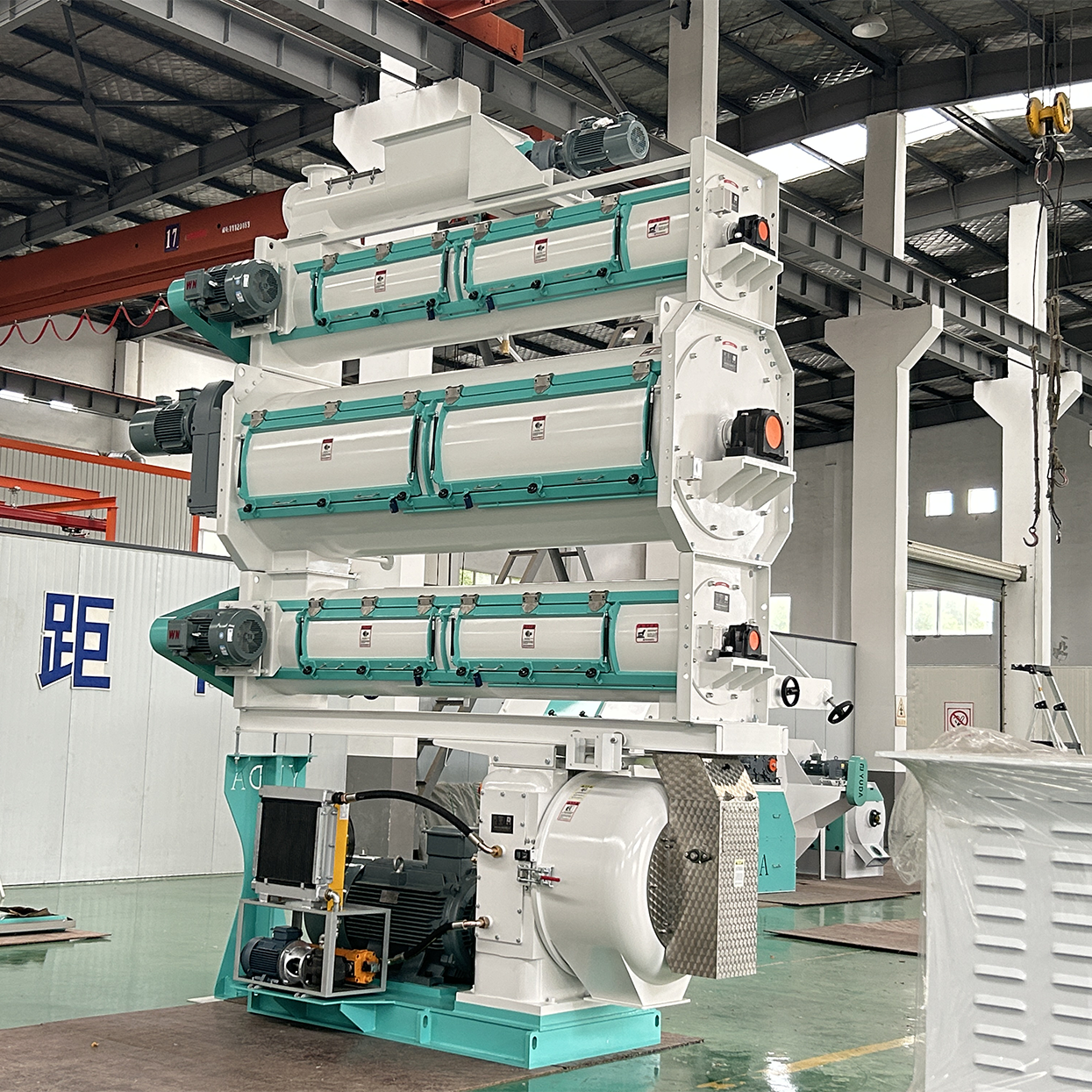

The SZLH558 pellet mill is a robust ring mould pellet mill engineered for large and medium-scale feed production facilities. Designed to deliver an annual single-shift capacity of 20,000 to 40,000 tons, it excels in producing premium-quality pelletized feed for modern feed mills. Featuring a compact yet sturdy structure with an aesthetically optimized design, this machine combines operational reliability with easy installation and maintenance accessibility.
Product description:
1.Output:17-20T/H
2.Standard parts such as bearngs oil seals and o-rings are selected from well-known foreign brands;
3.high-precision gear rotation,precise gear grinding,vibrationabsorption,strongvibrationisolation,lownoise;
4.Worm gear ring die lifting device improves the efficiency of ring die replacement;
5.Various types of high-end modulators, quality-preserving devices, improve the effect of raw material preparation;
6.Oil circulation cooling and lubrication system to improve the cooling and lubricating effect of main transmission components;
Technical Parameters:
| Model | SZLH558 | SZLH678 | SZLH768 |
| Motor power (kw) | 185/200KW | 200/220/250KW | 250/280/315KW |
| Feeder Power | 2.2KW | 3KW | 3KW |
| Conditioner Power | 7.5KW | 11KW | 11KW |
| Dia.of Ring Die | 572mm | 673mm | 762mm |
| Pellet Size | φ2-10mm | φ2-10mm | φ2-10mm |
| Capacity (t/h) | 17-20T/H | 20-25T/H | 25-32T/H |
| Dimension (mm) | 4700×1600×4900(mm) | 4800×1600×5300(mm) | 4800×1600×5300(mm) |
| Net weight (T) | 4.2T | 5.3T | 6.5T |
